SJW3 10kva-120kva High-Power 3-Phase Automatic Voltage Regulator
SJW three-phase high-power voltage stabilizer is carefully developed by Zhenxi’s technical team and adopts a new intelligent circuit board, which upgrades its performance comprehensively. It is equipped with six protection functions to ensure all-round protection of the equipment. This voltage regulator uses high quality pure copper power coils to enhance reliability and durability.
High-Power 3-Phase Automatic Voltage Regulator Core Features:
Intelligent Circuit Board Upgrade: Independently researched and developed by a professional technical team to comprehensively improve performance.
Six Protection Functions: Provides all-round protection for the equipment and enhances the safety of use.
Precise overload protection: AC contactor controlled by circuit board realizes precise power failure protection.
High-quality pure copper power coil: adopts purple copper coil winding to ensure the stability and reliability of the regulator.
360°Braking Casters: Equipped with high quality rubber casters, easy to move and with braking function.
Accurate voltage stabilization: the range is 260-510V, ensuring stable output voltage.
New LCD screen: One key to switch the input and output voltage, clear display, parameters at a glance.
Powerful cooling system: Equipped with front and rear dual cooling fans and heat sink design, effectively dissipate heat and prevent overheating.
High-efficiency motor: Adopting Zhenke motor with strong power, fast response, high precision of voltage regulation and long service life.
Precision regulation: 1017 double carbon brush regulation, strong conductivity, voltage regulation accuracy of ±3%.
SJW three-phase high-power voltage regulator is characterized by easy operation, can complete the voltage regulator wiring in one second, is the ideal choice to ensure stable operation of equipment.
Technical Date Sheet
| Input voltage | Regular models 260-450V/500V, Customized ultra low voltage models |
| Output voltage | 380V |
| Voltage regulation accuracy | 3% |
| Frequency | 50Hz/60Hz |
| Overvoltage protection value | Output voltage 430V±4V |
| Undervoltage protection value | Output voltage 320V±4V, regularly not set undervoltage protection |
| Load power factor | 0.8 |
| Adjust time | When the voltage change by10%<1S |
| Waveform distortion | No additional waveform distortion |
| Dielectric strength | 1500V/1min |
| Insulation resistance | Three phase >2MΩ |
| Insulation class | Class E |
| Working environment | Temperature :-10℃ to +40℃, Humidity: <95% |
| Effectiveness | >95% |
| Temperature rise | <60℃ |
| Model | Voltage regulation range | Product size | Package dimension | Net | Gross weight KGS |
| weight KGS | |||||
| SJW3/TNS-1500VA | 260V-450V | 485*320*170mm | 530*355*225mm | 13 | 15.5 |
| SJW3/TNS-3000VA | 260V-450V | 485*320*170mm | 530*355*225mm | 17.5 | 20 |
| SJW3/TNS-4500VA | 260V-450V | 485*320*170mm | 530*355*225mm | 18 | 20.6 |
| SJW3/TNS-6KVA | 260V-450V | 275*307*673mm | 330*360*760mm | 26.1 | 30.8 |
| SJW3/TNS-10KVA | 260V-450V | 310*330*760mm | 375*385*850mm | 37 | 43 |
| SJW3/TNS-15KVA | 260V-450V | 340*360*855mm | 400*420*950mm | 46 | 53 |
| SJW3/TNS-20KVA | 260V-450V | 460*422*880mm | 470*505*970mm | 92.8 | 102 |
| SJW3/TNS-30KVA | 260V-450V | 460*422*880mm | 470*505*970mm | 102 | 111 |
| SJW3/TNS-40KVA | 260V-450V | 460*422*880mm | 470*505*970mm | 114.5 | 123.5 |
| SJW3/TNS-50KVA | 260V-500V | 550*455*1160mm | 610*510*1310mm | 141 | 150 |
| SJW3/TNS-60KVA | 260V-500V | 550*455*1160mm | 610*510*1310mm | 161 | 172 |
| SJW3/TNS-80KVA | 260V-500V | 620*520*1330mm | 680*580*1470mm | 185 | 195 |
| SJW3/TNS-100KVA | 260V-500V | 620*520*1330mm | 680*580*1470mm | 205 | 215 |

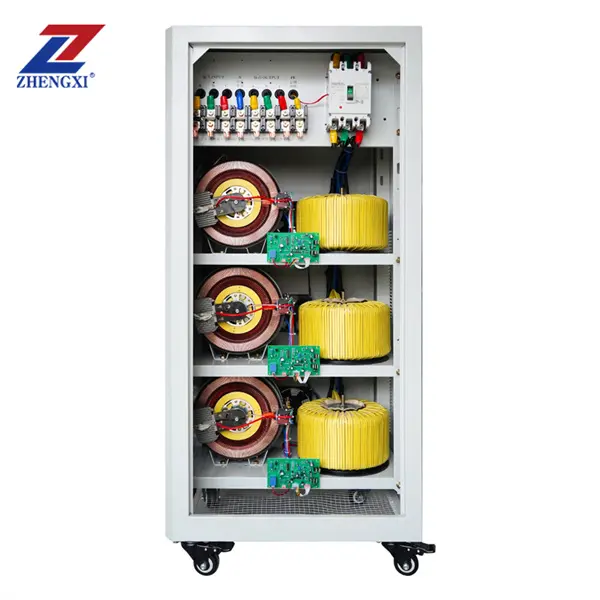

Voltage regulator internal display diagram
-
